Vertiv Trinergy UPS 1500-2000 kW 400V CE

The Vertiv™ Trinergy™ UPS is a high-capacity modular UPS built for large-scale applications such as AI and high-performance computing. It combines maximized reliability and resilience with high efficiency and continuous operation under rapid load changes.

With up to 99% efficiency in Dynamic Online mode and outstanding double-conversion performance, Trinergy reduces energy cost and total cost of ownership. Standardized CE 400V configurations support global installations.

Key Features

• Maximized reliability and resilience under extreme electrical conditions
• High-density power in a single block for AI / HPC data centres
• Multi-module modular design - scale capacity and redundancy with ease
• Supports lithium-ion, nickel-zinc and other backup energy sources
• Up to 99% efficiency (Dynamic Online) · up to 97.1% double conversion (VFI)
• Transformer-free full IGBT three-level double conversion
• Unity power factor (output PF up to 1)
• Advanced diagnostics with multi-language colour touchscreen
• Distributed batteries for improved fault tolerance
• System capacity scalable from ~1.5 MW toward multi-MW designs

Applications

• Data centre / colocation / hosting
• AI and high-performance computing (HPC)
• Manufacturing
• Telecom

Technical Overview

Topology	Transformer-free IGBT three-level double conversion
Phases	3-phase (CE 400V)
Power factor	Unity (up to 1.0)
Efficiency	Up to 97.1% VFI · up to 99% Dynamic Online
Architecture	Modular / multi-module large UPS

Type Overview - CE 400V

All CE 400V ratings featured as models on this site.

Model	Power (kVA / kW)	Output Current @ 400V (A)	Height (mm)	Width with AC cabinet (mm)	Depth (mm)	Weight (kg)
Trinergy 1500 kW 400V CE	1500 / 1500	2165	2013	4150	1050	4200

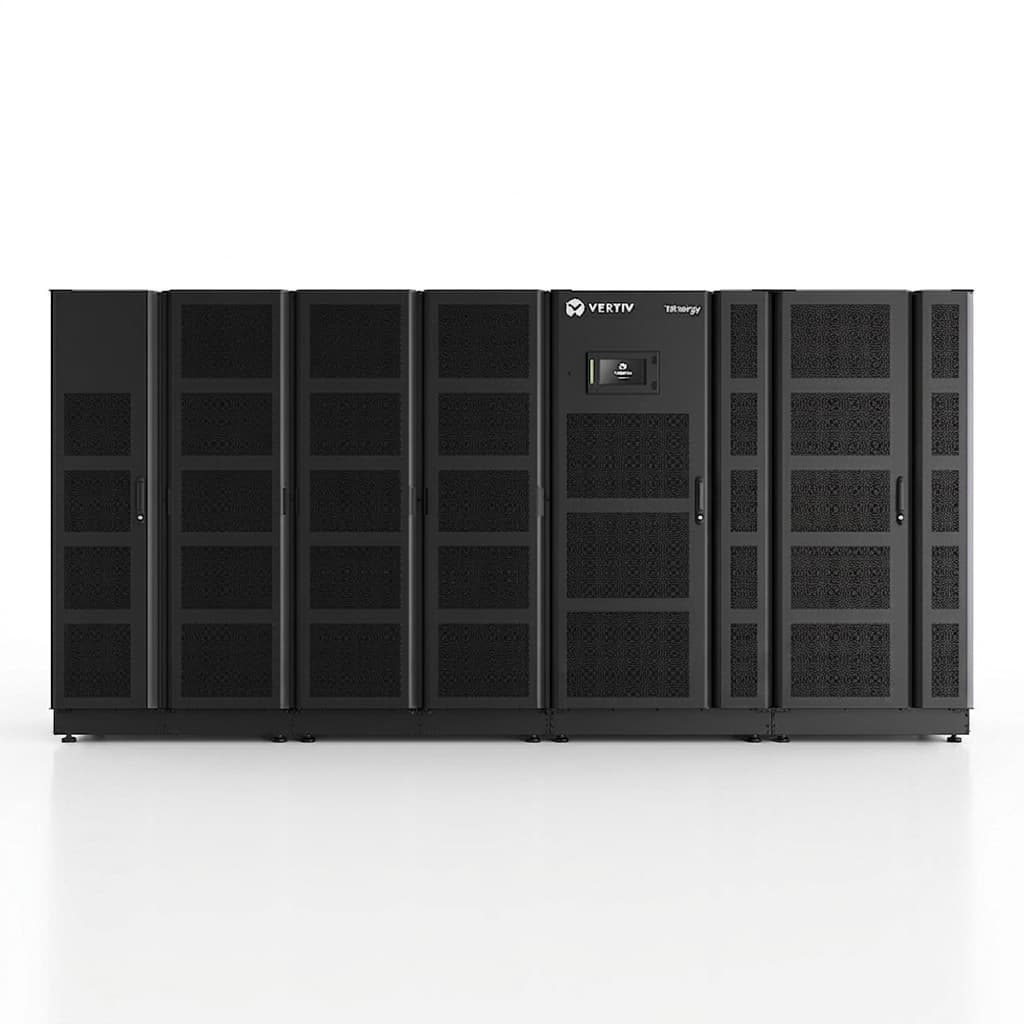

Trinergy 1600 kW 400V CE	1600 / 1600	2308	2013	4150	1050	4200
Trinergy 2000 kW 400V CE	2000 / 2000	2887	2013	5700	1050	5454

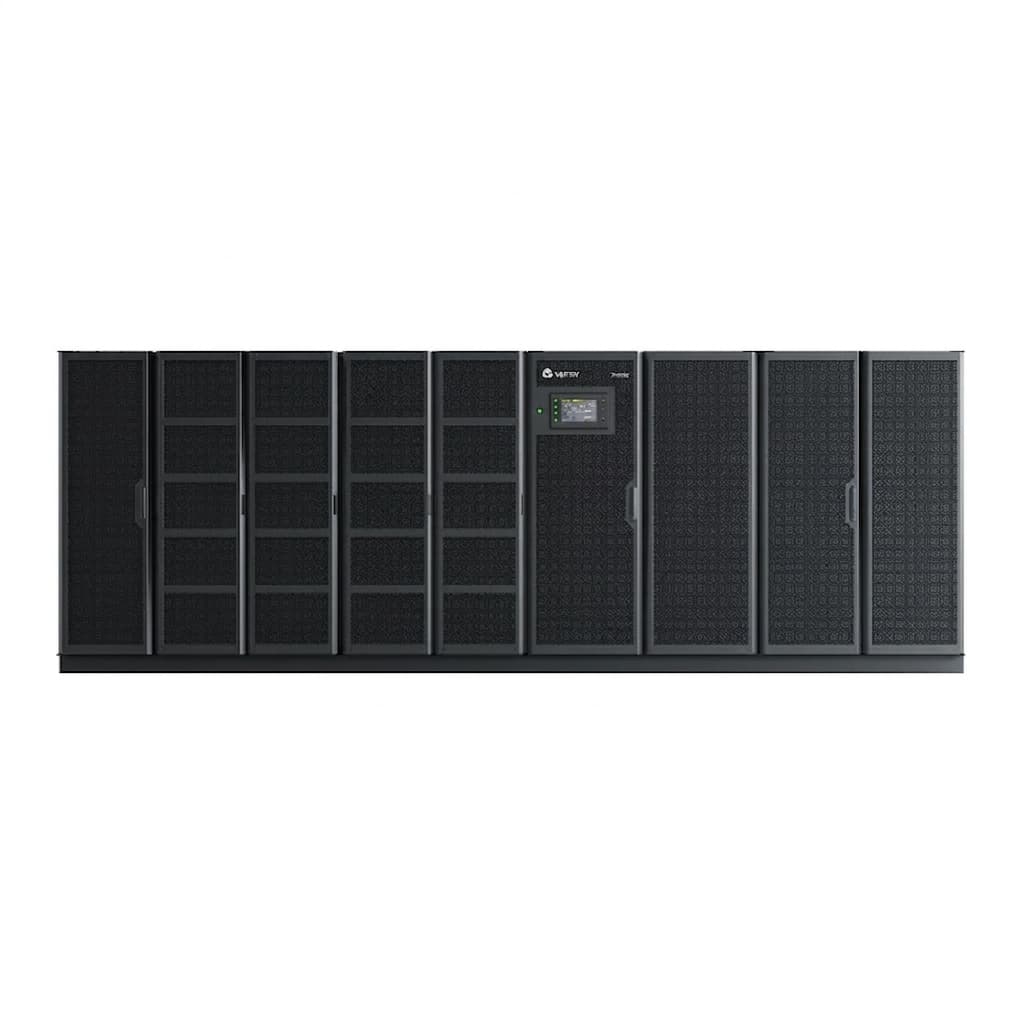

Trinergy 2132 kW 400V CE	2132 / 2132	3077	2013	5700	1050	5454
