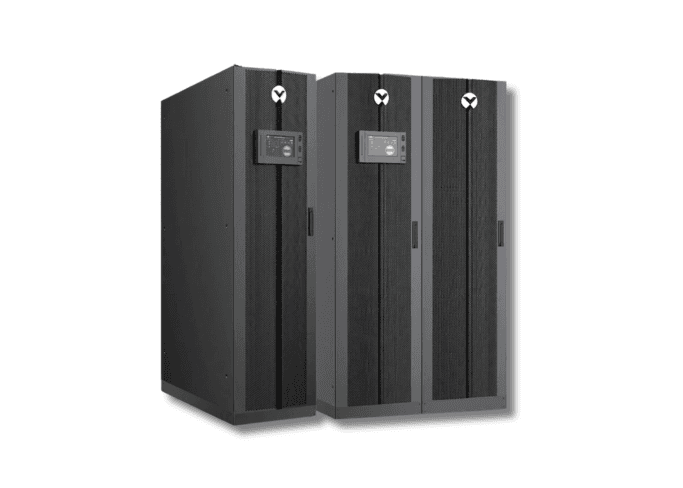

Vertiv Liebert APM2 30-600kW

Vertiv™ Liebert® APM2 is a next-generation modular, transformerless UPS for mission-critical applications. Three-level IGBT topology with Silicon Carbide converters delivers double conversion efficiency up to 97.5%, lowering TCO and environmental impact.

Hot-swappable power, bypass and communication modules support fast service (MTTR < 0.5 h) and flexible capacity growth in a single frame up to 600 kW.

Key Features

• Up to 97.5% double conversion · up to 98.8% Dynamic Online · up to 99% ECO mode
• Modular high-density design - scalable to 600 kW in one unit
• Hot-swappable power, bypass, HMI and communication modules
• Intelligent paralleling
• 9-inch full-colour touchscreen HMI with real-time waveform monitoring
• Predictive maintenance notifications
• Operates up to 50°C (auto-derating above 40°C)
• Flexible battery blocks (30–50*) · lithium-ion compatible
• Supports self-capacity test
• Optimised MTTR < 0.5 h

Applications

• Data centre / colocation / hosting
• Healthcare, education and government
• Manufacturing and telecom
• Transportation and fire / alarm / security

Technical Overview

Type	Modular transformerless 3-phase UPS
Capacity range	30–600 kW (400 V CE)
Input / output voltage	380 / 400 / 415 V 3Ph+N+PE
Input voltage range	228–478 V (without battery discharge)
Power factor	Unity (kVA = kW)
Power modules	30 kW (30–120 frame) · 60 kW (60–600 frames)

Type Overview - Frame Models

Featured configurations on this site: the three CE 400V frames. Capacity is built from hot-swappable modules within each frame.

Frame	Capacity Range	Module Size	Efficiency (VFI)	W × D × H (mm)*	Weight (kg)*

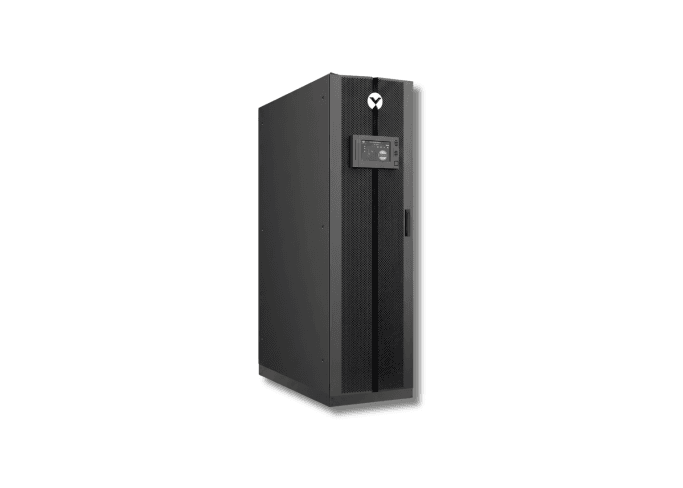

APM2 30-120 kW	30–120 kW	30 kW	Up to 97%	600 × 800 × 1600	380

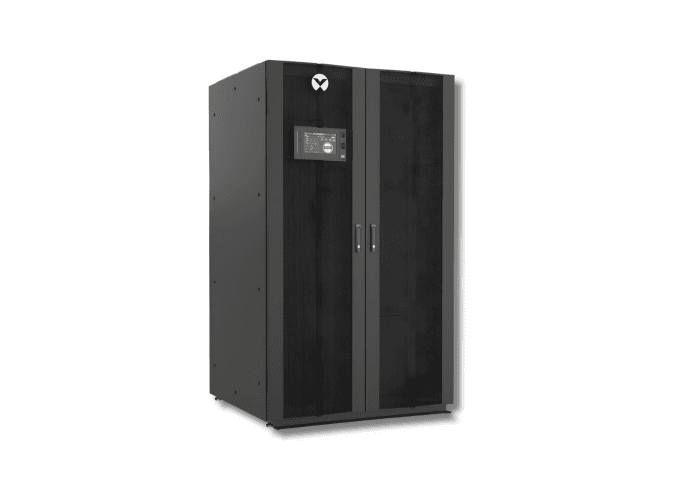

APM2 60-600 kW	60–600 kW	60 kW	Up to 97.5%	1200 × 1000 × 2000	830

*Compact / full-switch assembly dimensions from brochure (variant-dependent). Contact us for internal-battery and switch-cabinet options.
