100 kVAVertiv™ Liebert® EXM2
- Efficiency
- Up to 97% VFI · 98.8% Dynamic Online · 99.2% ECO
- Input
- 380 / 400 / 415 V 3Ph+N
- Output
- 380 / 400 / 415 V 3Ph+N
Full specsDetails
Loading
Loading
Vertiv · Series
Monolithic mid-size 3-phase UPS (100–250 kVA/kW) with three operating modes, intelligent paralleling, and up to 98.8% Dynamic Online efficiency.
100 kVA – 250 kVA
Range
USA
Origin
5
Models
Configurations
5 configurations
100 kVA
120 kVA
160 kVA
200 kVA
250 kVAOverview

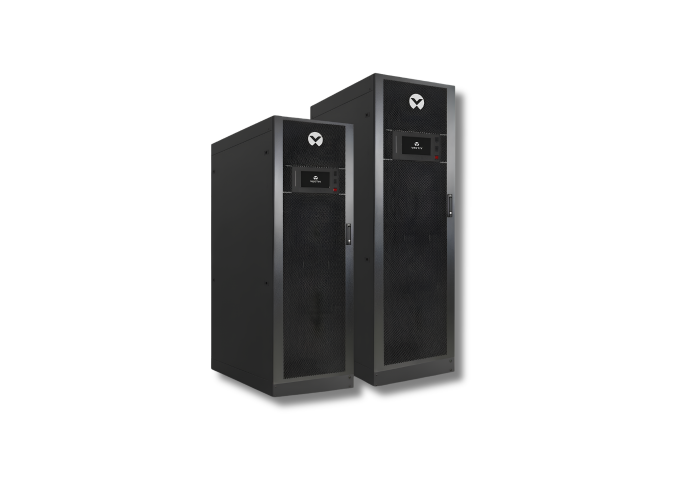

Vertiv™ Liebert® EXM2 is a monolithic UPS for next-generation mid-size critical applications. Three operating modes plus intelligent paralleling deliver efficiency up to 98.8% without sacrificing availability. A compact, flexible design fits in-row, room or against-the-wall layouts.
| Type | Monolithic 3-phase UPS |
| Ratings | 100 / 120 / 160 / 200 / 250 kVA/kW |
| Input / output voltage | 380 / 400 / 415 V 3Ph+N |
| Input voltage range | 228–478 V (without battery discharge) |
| Frequency | 50 / 60 Hz |
| Power factor | Unity (kVA = kW) |
| Parallel | Up to 6 units |
| Model | Power (kVA / kW) | W × D × H (mm) | Weight (kg) |
|---|---|---|---|
| EXM2 100 kVA | 100 / 100 | 600 × 850 × 1600 | 315 |
| EXM2 120 kVA | 120 / 120 | 600 × 850 × 1600 | 350 |

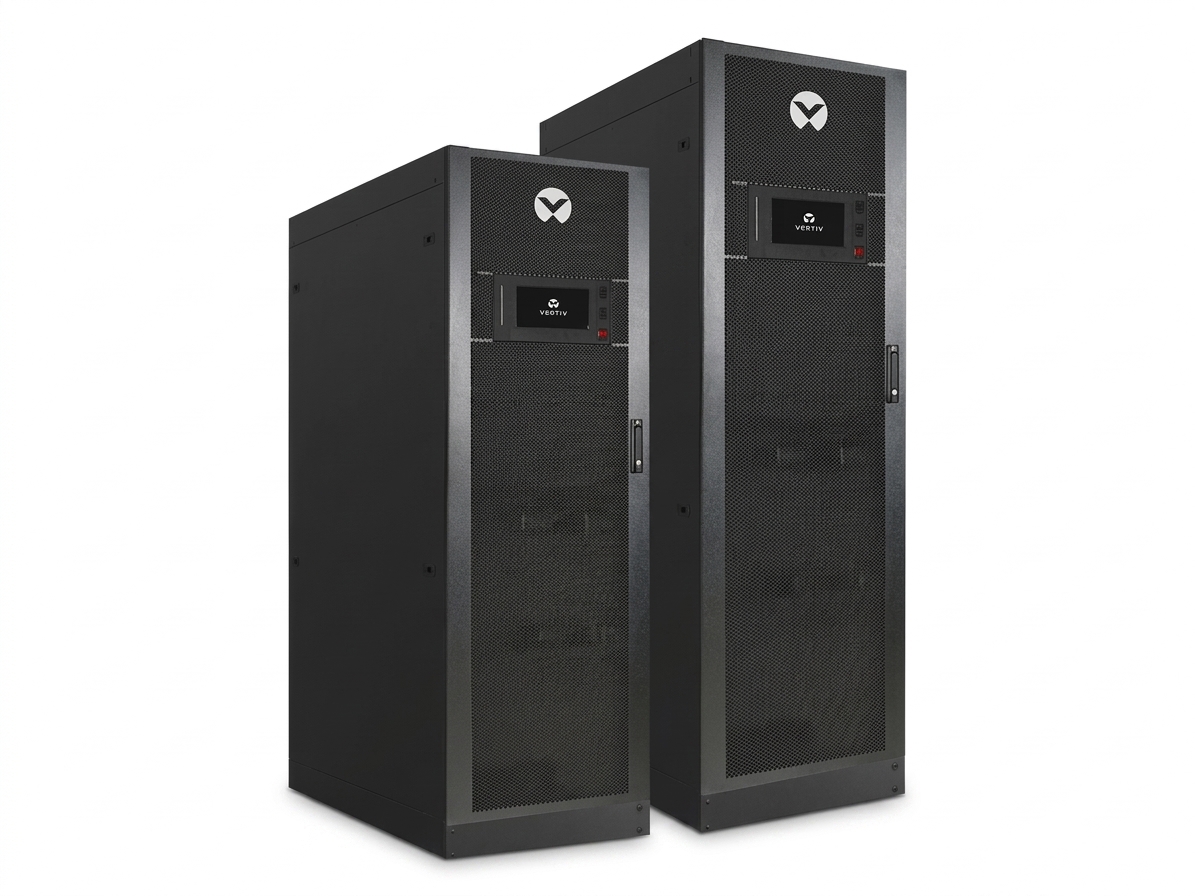

| EXM2 160 kVA | 160 / 160 | 600 × 850 × 1600 | 350 |
| EXM2 200 kVA | 200 / 200 | 600 × 850 × 2000 | 412 |
| EXM2 250 kVA | 250 / 250 | 600 × 850 × 2000 | 447 |
Same brand

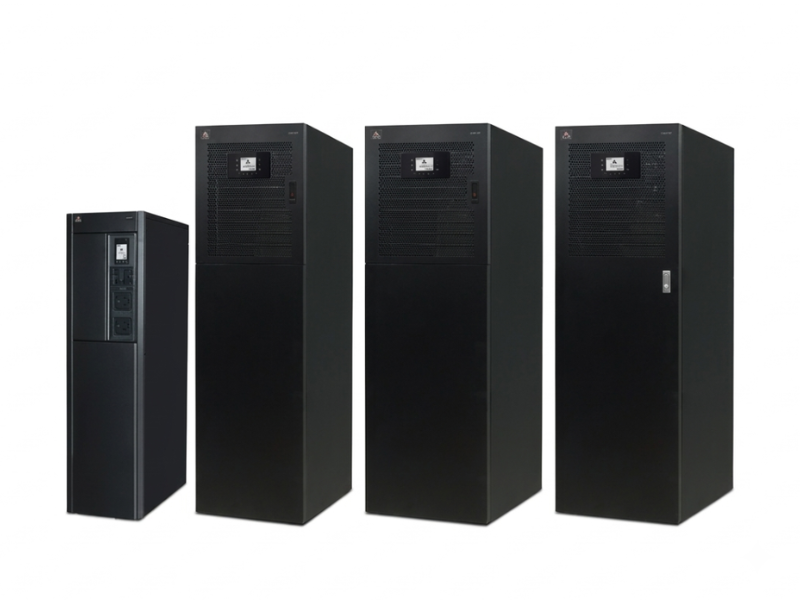

Vertiv Liebert EXS 10-80kVA is a high-efficiency online double conversion UPS designed to provide reliable power protection for data centers, IT infrastructure, industrial applications, and critical equipment.
High-capacity modular 3-phase UPS for large data centres and AI-up to 99% Dynamic Online efficiency, unity power factor, scalable architecture.

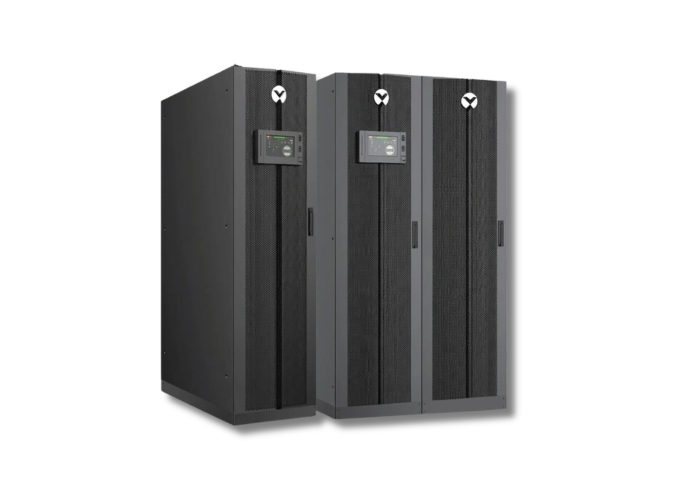

Next-generation modular transformerless UPS with SiC converters - up to 97.5% double conversion efficiency, hot-swappable modules, scalable from 30 to 600 kW.
