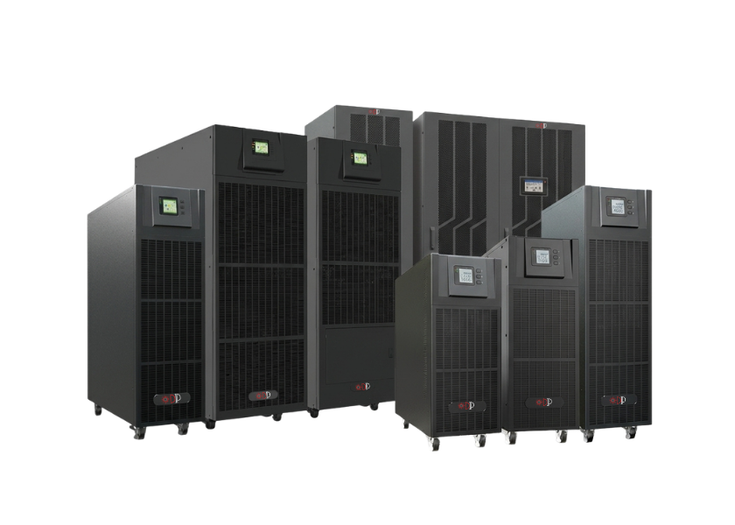

DIP Three Phase UPS

DIP Three Phase UPS is a transformerless, online double-conversion 3-phase UPS for commercial and industrial critical loads from 10 to 200 kVA.

Key Features

• Online double conversion with DSP control
• 3-phase in / 3-phase out (3Ph+N+PE)
• Output power factor 0.9 (unity PF optional)
• Wide input voltage range 208–478 VAC
• Input power factor ≥ 0.99 · THDi < 3%
• ECO mode for energy saving (up to 99%)
• Parallel operation (up to 4 units on 10–40 kVA · up to 6 units on 50–200 kVA)
• Generator compatible · frequency converter mode
• LCD / TFT display · USB, RS232, RS485, SNMP optional

Applications

• Data centre and server rooms
• Commercial and industrial facilities
• Healthcare and telecom
• Banks and government

Technical Overview

Type	Online double conversion 3-phase UPS
Range	10 – 200 kVA
Input / output	380 / 400 / 415 V 3Ph+N+PE
Frequency	50 / 60 Hz

Type Overview

Model	kVA / kW	W × D × H (mm)	Weight (kg)	AC eff.
DIP10KVA 3P	10 / 10	250 × 580 × 655	35	Up to 93.5%
DIP15KVA 3P	15 / 15	250 × 580 × 655	39	Up to 98.0%
DIP20KVA 3P	20 / 20	250 × 580 × 655	40	Up to 98.6%
DIP30KVA 3P	30 / 30	250 × 580 × 655	43	Up to 98.2%

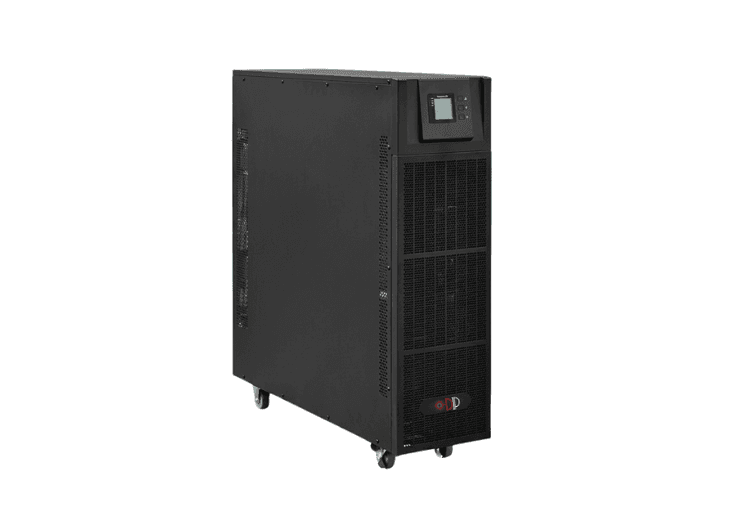

DIP40KVA 3P	40 / 40	250 × 580 × 655	46	Up to 94.5%
DIP50KVA 3P	50 / 50	250 × 828 × 868	80	Up to 95.5%
DIP60KVA 3P	60 / 60	250 × 828 × 868	83	Up to 95.5%
DIP80KVA 3P	80 / 80	442 × 850 × 1200	144	Up to 95.5%
DIP100KVA 3P	100 / 100	442 × 850 × 1200	147	Up to 95.5%
DIP120KVA 3P	120 / 120	442 × 850 × 1200	152	Up to 95.5%
DIP150KVA 3P	150 / 150	442 × 850 × 1200	190	Up to 95.5%
DIP160KVA 3P	160 / 160	442 × 850 × 1200	200	Up to 95.5%
DIP180KVA 3P	180 / 180	442 × 850 × 1200	220	Up to 95.5%
DIP200KVA 3P	200 / 200	442 × 850 × 1200	230	Up to 95.5%

Battery-tower and long-backup configurations available on request.
