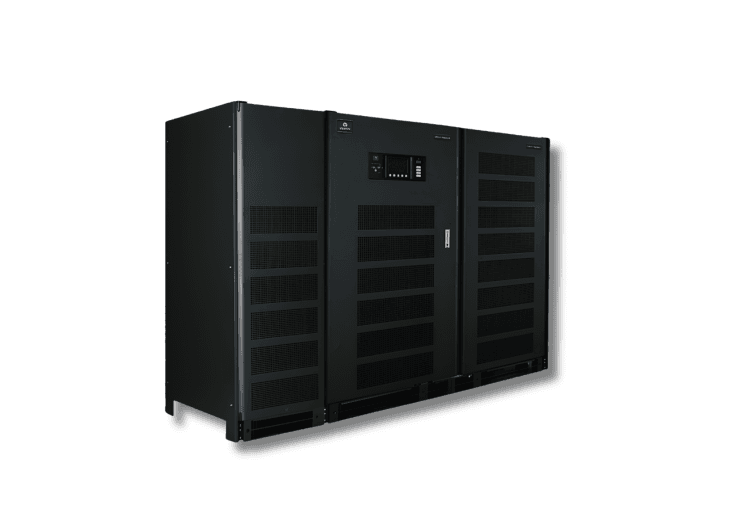

Liebert HIPULSE-U 30kVA - 500kVA

Vertiv™ Liebert® Hipulse-U is a reliable, scalable online double-conversion UPS for critical business applications. Twin DSP digital control and a customisable option set help protect investment and lower total cost of ownership.

Key Features

• Fully digital twin DSP control
• 0.9 output power factor - more active power than conventional 0.8 PF designs
• Online double conversion IGBT-based PWM inverter
• Wide input voltage range (323–478 VAC) and frequency (45–65 Hz)
• Handles high crest factor, 100% non-linear and 100% unbalanced loads
• Built-in maintenance bypass · front access for service
• Easy dual-bus configuration architecture
• Overload: 110% for 60 min · 125% for 10 min · 150% for 1 min
• Parallel scalable up to 6 units (1+N / hot stand-by / dual bus)
• ModBus / Jbus · SNMP network options
• Up to ~93% double conversion · up to ~98% ECO mode

Applications

• Critical business and IT networks
• Data centre and telecom
• Industrial and commercial facilities

Technical Overview

Type	Online double conversion UPS (VFI-SS-111)
Capacity range	30–500 kVA
Output power factor	0.9
Input / output voltage	380 / 400 / 415 V 3Ph+N
Input voltage range	323–478 VAC
Parallel	Up to 6 units

Type Overview

Featured configurations on this site: 80 kVA, 200 kVA and 400 kVA. Full Hipulse-U range below - contact us for other sizes.

Model	kVA	kW (@ 0.9 PF)	W × D × H (mm)
Hipulse-U 30	30	27	715 × 810 × 1250
Hipulse-U 40	40	36	715 × 810 × 1250
Hipulse-U 60	60	54	715 × 810 × 1250

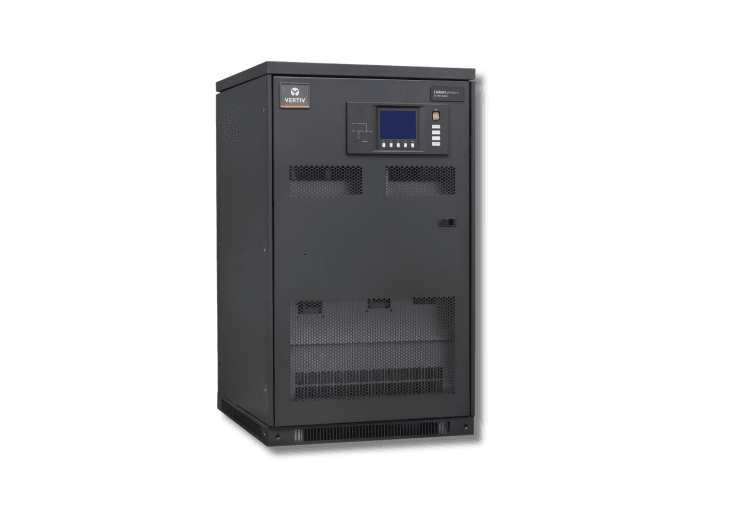

Hipulse-U 80	80	72	900 × 855 × 1900
Hipulse-U 120	120	108	1250 × 855 × 1900
Hipulse-U 160	160	144	1250 × 855 × 1900

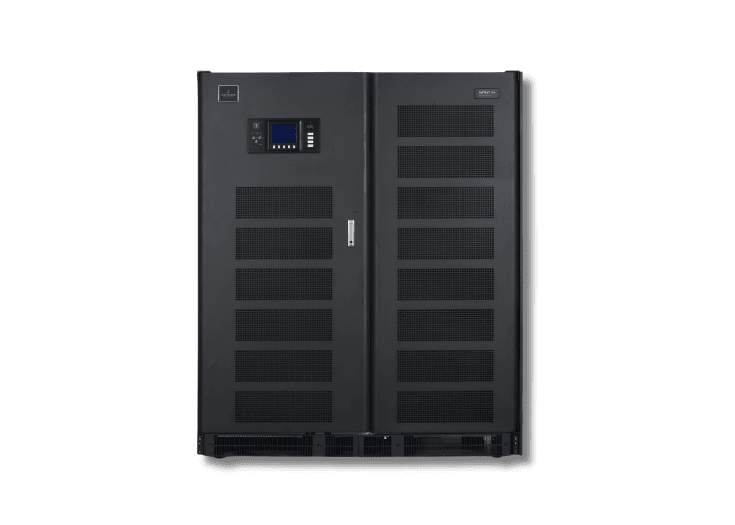

Hipulse-U 200	200	180	1640 × 855 × 1900
Hipulse-U 300	300	270	1640 × 855 × 1900
Hipulse-U 400	400	360	2280 × 855 × 1900
Hipulse-U 500	500	450	2640 × 855 × 1900
