650 VADIP650
- Versatility
- Adaptive Output Socket
- Input
- 220 / 230 / 240 VAC
- Output
- 220 / 230 / 240 VAC
Full specsDetails
Loading
Loading
DIP · Series
Economical line-interactive UPS with simulated sine wave, wide input range, and fast transfer for PCs, workstations and small office loads.
650 VA – 3000 VA
Range
China
Origin
4
Models
Configurations
4 configurations
650 VA
1200 VA
2000 VA
3000 VAOverview
DIP Line Interactive UPS delivers reliable, economical backup power for PCs, workstations and small office equipment. Line-interactive topology with simulated sine wave output, automatic voltage handling and fast transfer keeps critical loads running during outages and brownouts.
| Type | Line-interactive UPS |
| Models | DIP650 / DIP1200 / DIP2000 / DIP3000 |
| Input / output | 220 / 230 / 240 VAC (also 110/120 VAC options) |
| Frequency | 50 / 60 Hz (auto sensing) |
| Waveform (battery) | Simulated sine wave |
| Transfer time | Typical 2–6 ms |
| Model | Capacity | Battery | D × W × H (mm) | Weight (kg) |
|---|---|---|---|---|

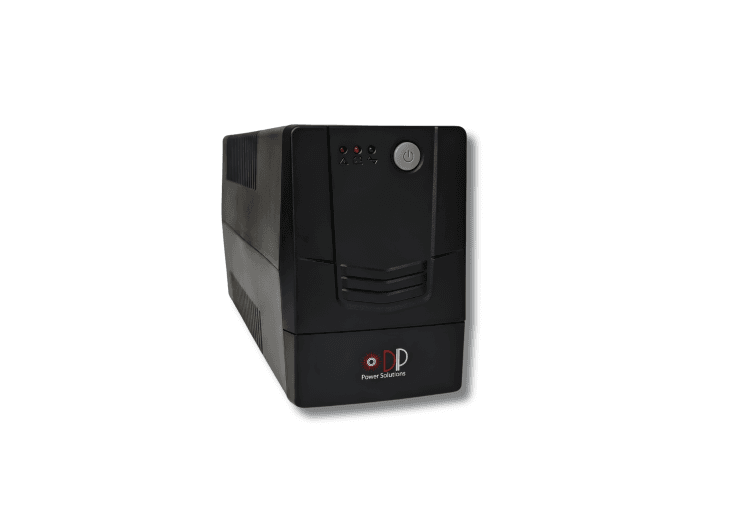

| DIP650 | 650 VA / 360 W | 12V 7Ah × 1 | 297 × 101 × 142 | 4.2 |
| DIP1200 | 1200 VA / 720 W | 12V 7Ah × 2 | 370 × 138 × 165 | 9.5 |

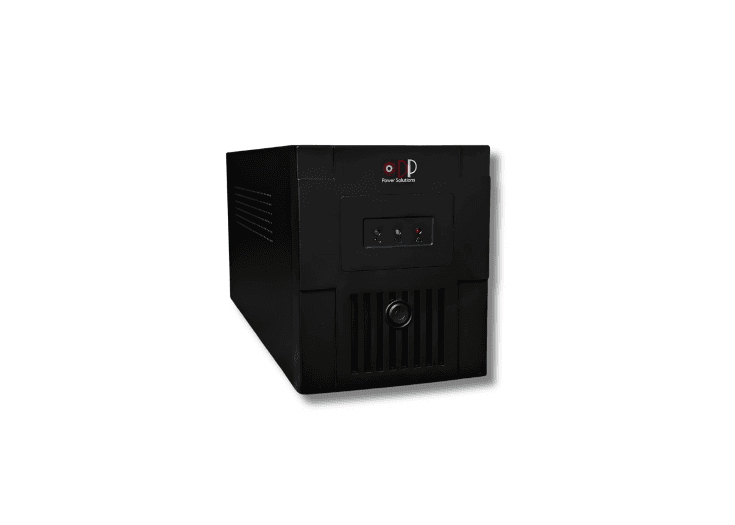

| DIP2000 | 2000 VA / 1200 W | 12V 9Ah × 2 * | 370 × 138 × 165 * | 11.3 * |

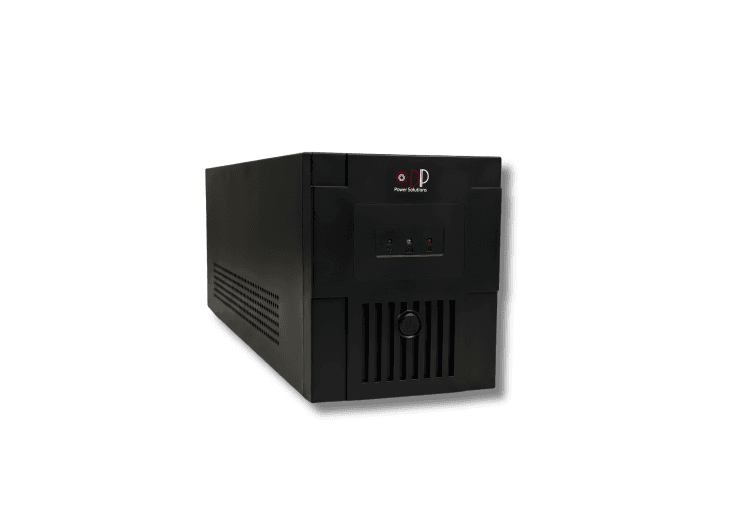

| DIP3000 | 3000 VA / 1800 W | 12V 9Ah × 2 * | 370 × 138 × 165 * | 12.3 * |
*DIP2000 / DIP3000 also available in extended battery / cabinet variants (e.g. 466 × 138 × 165 mm). Contact us for the exact configuration.
