100 AhLR24-100
Full specsDetails
Loading
Loading
LEOCH · Series
19-inch rack LiFePO₄ home energy storage modules-up to 1C charge/discharge, multi-inverter compatible, for household PV and off-grid backup.
100 Ah · 200 Ah
Range
China
Origin
3
Models
Configurations
3 configurations
Overview

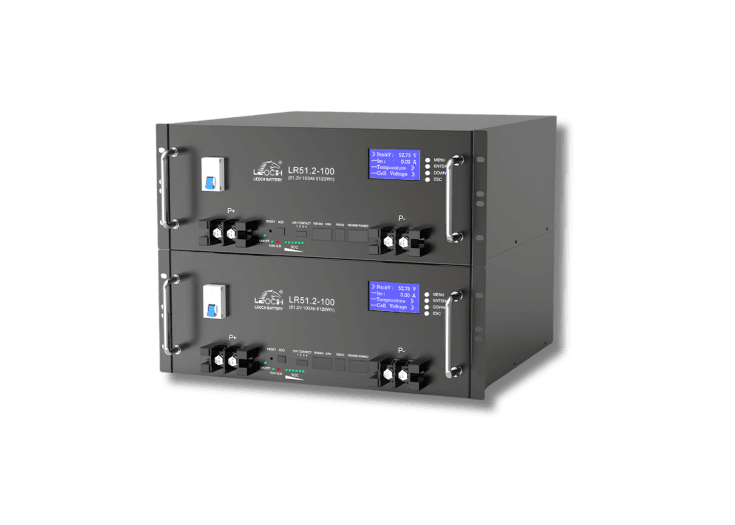

LEOCH Rack-Mounted Residential Energy Storage Systems are LiFePO₄ modules designed for standard 19-inch cabinets. They support fast charge/discharge, a clear HMI, and multi-brand inverter compatibility for household and off-grid backup applications.
| Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Form factor | 19-inch rack mount |
| Charge / discharge | Up to 1C |
| Interface | HMI + multi-inverter compatibility |
| Product group | C&I / Residential Energy Storage |
Featured configurations on this site: LR24-100, LR51.2-100 and LR51.2-200. Full residential rack range below-contact us for other sizes.
| Model | Voltage | Capacity (Ah) | Energy (kWh) | Height | Dimensions W×D×H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|

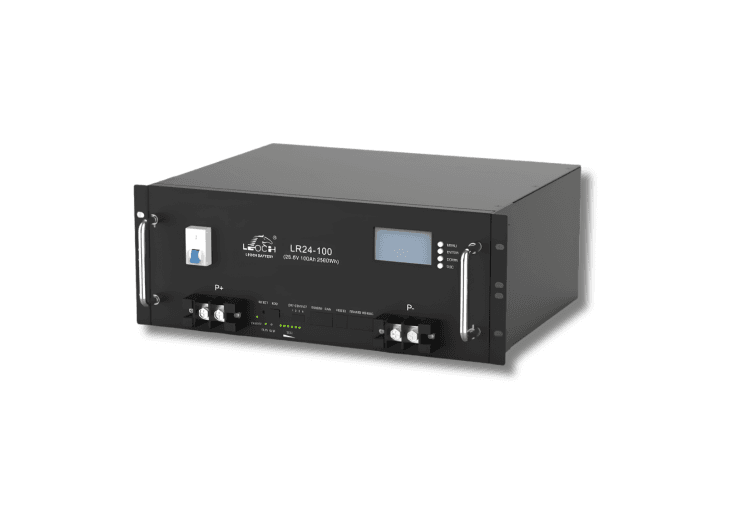

| LR24-100 | 25.6 V | 100 | 2.56 | 4U | 442×350×177 | 26 |
| LR24-200 | 25.6 V | 200 | 5.12 | 4U | 442×450×177 | 43 |

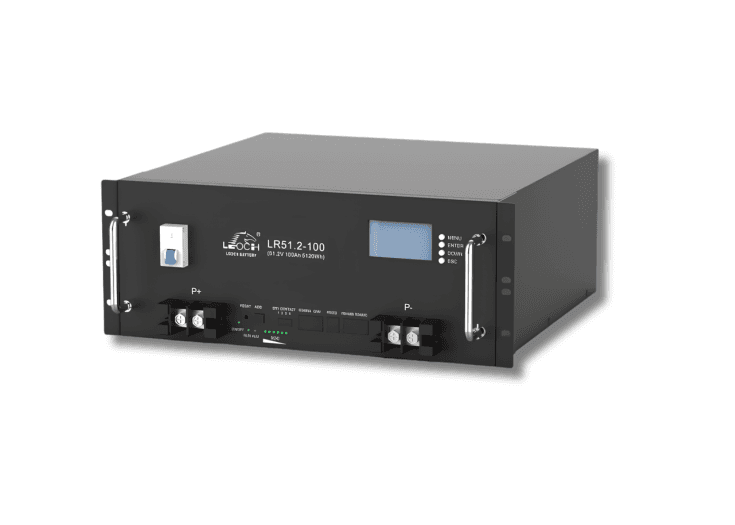

| LR51.2-100 (4U) | 51.2 V | 100 | 5.12 | 4U | 442×431×177 | 43 |
| LR51.2-100 (3U) | 51.2 V | 100 | 5.12 | 3U | 442×460×133 | 43 |

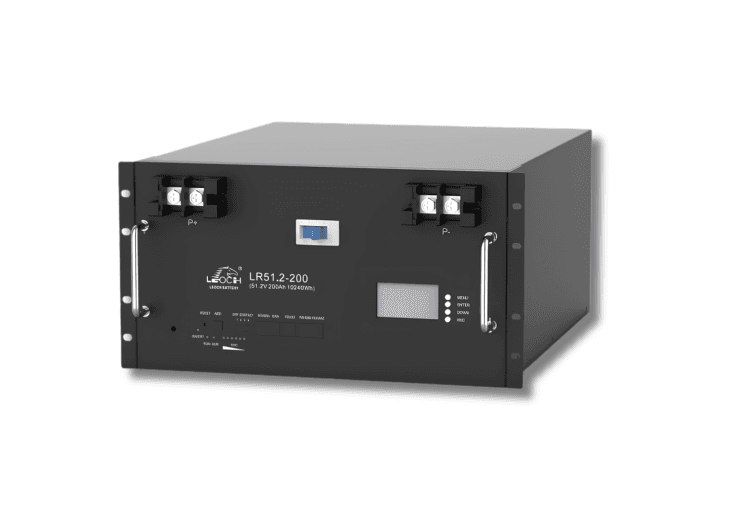

| LR51.2-200 | 51.2 V | 200 | 10.24 | 5.5U | 442×550×244 | 82 |
