Vertiv · Model

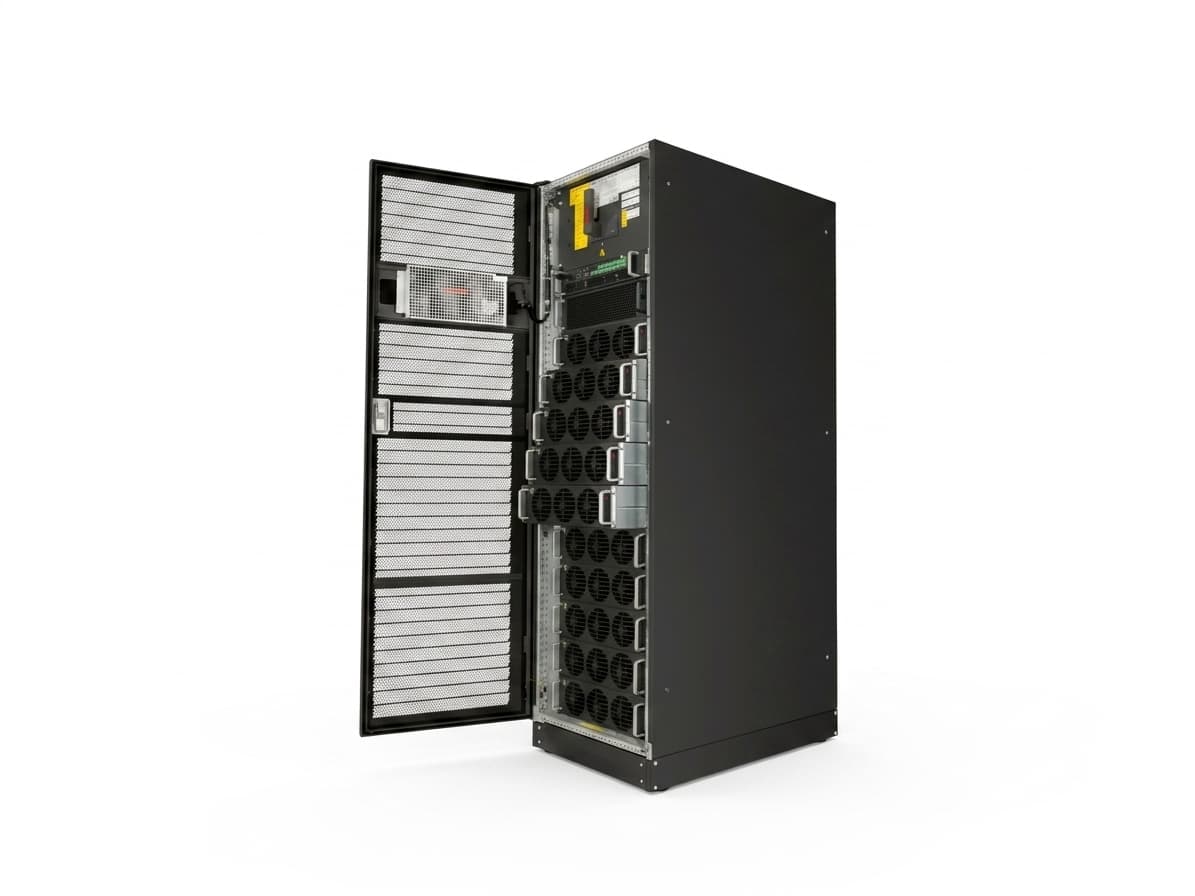

APM Plus 50-500 kW (full switch)

Scalable high-density modular transformer-free UPS (50–500 kW) with up to 97% double conversion efficiency, hot-swappable modules, and ultra-compact footprint.

50–500 kVA
Power rating
Up to 97% VFI · 98.8% Dynamic Online · 99% ECO
Efficiency
Vertiv Liebert APM Plus
Series

50–500 kVA

In
Input
380 / 400 / 415 V 3Ph+N
Ou
Output
380 / 400 / 415 V 3Ph+N
He
Height
2000 mm
Wi
Width
1200 mm
De
Depth
1000 mm
We
Weight
824 kg

Technical data

Technical specifications

Detailed metrics for this configuration within the Vertiv Liebert APM Plus series.

Models · metric

Model	Power Rating	Input Voltage	Output Voltage	Efficiency	Height	Width	Depth	Weight
APM Plus 50-500 kW (full switch)	50–500 kVA	380 / 400 / 415 V 3Ph+N	380 / 400 / 415 V 3Ph+N	Up to 97% VFI · 98.8% Dynamic Online · 99% ECO	2000 mm	1200 mm	1000 mm	824 kg

Other configurations

More Vertiv Liebert APM Plus models

All series models →

APM Plus 50-250 kW50–250 kVA
APM Plus 50-500 kW (no switch)50–500 kVA
