grid | power VRX-HR & VRX-HR FT

The grid | power VRX-HR series is a further development of HOPPECKE AGM batteries in ESS technology, designed to increase energy and power density without sacrificing durability.

Thinner electrodes with a more noble grid material and innovative electrode design improve charge-carrier exchange, reduce internal resistance, and raise high-current capability. Gains of up to 15% in energy density and 2% in power density confirm the performance of this series, which also offers strong cycle durability.

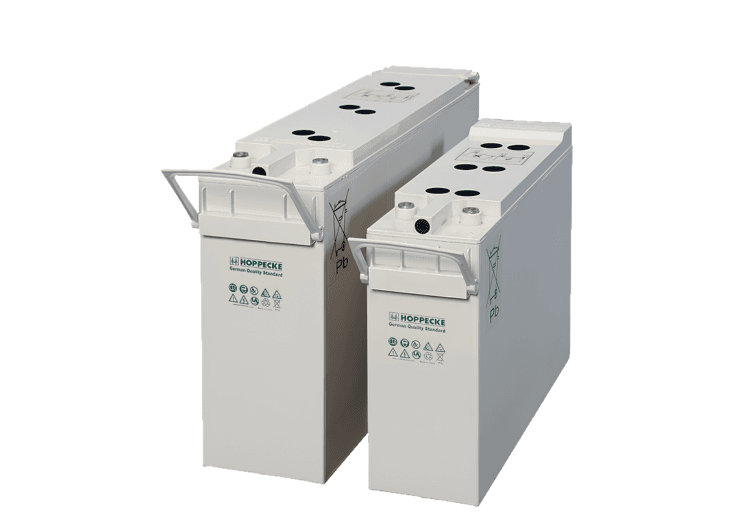

Available as top terminal (VRX-HR) and front terminal (VRX-HR FT) variants, it is a preferred choice for UPS and telecom applications. Front-terminal dimensions correlate with 19" and 23" rack standards.

Key Features

• Low investment and operating costs
• Fast-charging capability
• Low maintenance-no water refilling
• Optimum operational reliability
• Simple assembly with integral handle
• Horizontal arrangement / stackable options
• Design life 12 years (EUROBAT)
• Compliant with IEC 60896-21 / IEC 60896-22

Applications

• Uninterruptible power supply (UPS)
• Telecommunications (BTS / mobile stations)
• Power supply systems
• Emergency lighting

Technical Overview

Construction	Sealed-gas-tight, valve-regulated (VRLA)
Series	AGM-Absorbent Glass Mat
Technology	Lead-acid
Performance	High-rate (HR) discharge
Product group	Cells, Blocks, Modules

Type Overview — VRX-HR (Top Terminal)

Featured configurations on this site: 12330, and FT 12510. Full VRX-HR range below-contact us for other sizes.

Type	P15 min (Wpc)	Capacity C10 (Ah)	Length (mm)	Width (mm)	Height (mm)	Weight (kg)
VRX-HR 12190	190	57	207	177	230	20.2
VRX-HR 12260	261	63	229	177	230	23.8
VRX-HR 12310	313	68	229	177	230	26.0
VRX-HR 12330	332	88	344	177	230	33.0
VRX-HR 12400	401	102	344	177	230	35.6
VRX-HR 12470	468	114	344	177	230	40.2
VRX-HR 12530	529	142	498	177	230	48.8
VRX-HR 12600	600	153	498	177	230	51.3
VRX-HR 12640	643	166	498	177	230	55.8

Type Overview-VRX-HR FT (Front Terminal)

Type	P15 min (Wpc)	Capacity C10 (Ah)	Length (mm)	Width (mm)	Height (mm)	Weight (kg)
VRX-HR FT 12340	342	88	383	105	265	31.5
VRX-HR FT 12390	385	113	541	125	217	36.4
VRX-HR FT 12510	509	168	541	125	302	52.4
VRX-HR FT 12610	612	177	541	125	302	59.2
VRX-HR FT 12740	700	205	522	224	231	66.0
VRX-HR FT 12880	864	272	522	278	232	82.2
