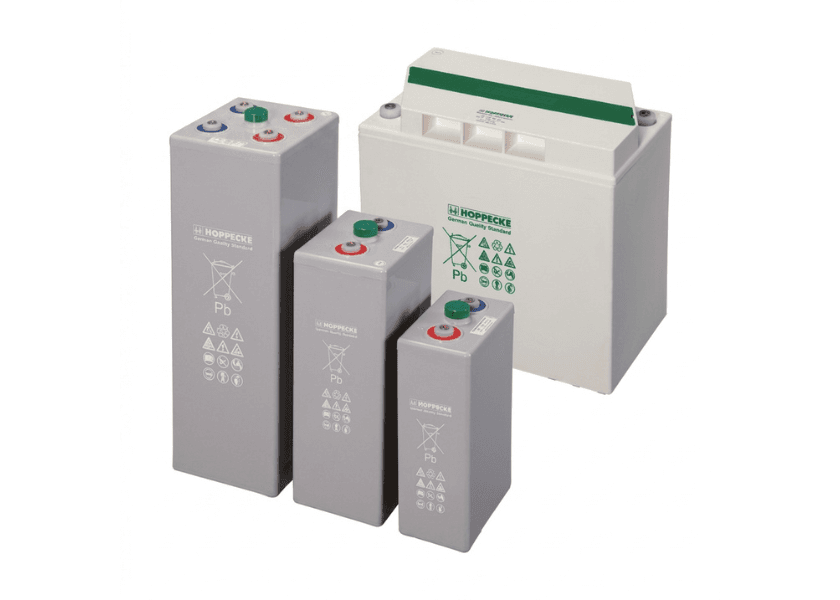

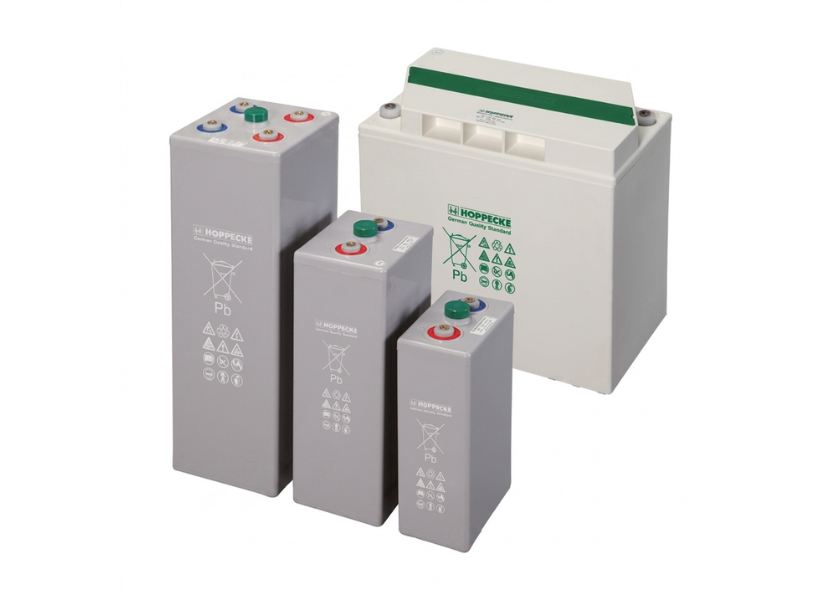

grid | power VR L

The valve-regulated lead-acid batteries of the grid | power VR L series deliver high reliability through proven positive tubular electrodes and electrolyte fixed in gel. Plastic-moulded, corrosion-free terminals reflect the quality standard of this product.

Excellent service life in float charge and strong cycling performance are key characteristics. Horizontal installation is also possible, improving flexibility where space is limited and widening the range of applications.

Ideally suited for telecommunications, power generation and distribution, and emergency lighting systems.

Key Features

• Maintenance-free regarding water refilling-gel technology
• Very high durability with optimized lead-calcium alloy
• Very good cycle stability-tubular plate design
• Maximum compatibility-design according to DIN 40742 / DIN 40744
• Optimum space use-horizontal arrangement possible
• Increased short-circuit protection with HOPPECKE system connectors
• Design life up to 20 years (OPzV cells) / up to 15 years (power.bloc)
• Compliant with IEC 60896-21 / IEC 60896-22

Applications

• Telecommunications (BTS / mobile stations)
• Transformer substations
• Safety / emergency lighting
• Village power supply
• Fossil and nuclear power plants
• Traffic signalling and lighting

Technical Overview

Construction	Sealed-gas-tight, valve-regulated (VRLA)
Series	OPzV-stationary tubular plate, gel
Technology	Lead-acid
Performance	L-discharge with low current
Product group	Cells, Blocks, Modules

Type Overview-OPzV Cells (2 V)

Featured configurations on this site: 12-100, 2-500. Full grid | power VR L range below-contact us for other sizes.

Type	DIN	Capacity C10 (Ah)	Length (mm)	Width (mm)	Height (mm)	Weight (kg)
VR L 2-215	4 OPzV 200	214	105	208	420	18.3
VR L 2-270	5 OPzV 250	267	126	208	420	22.2
VR L 2-325	6 OPzV 300	320	147	208	420	26.5
VR L 2-420	5 OPzV 350	412	126	208	535	29.7

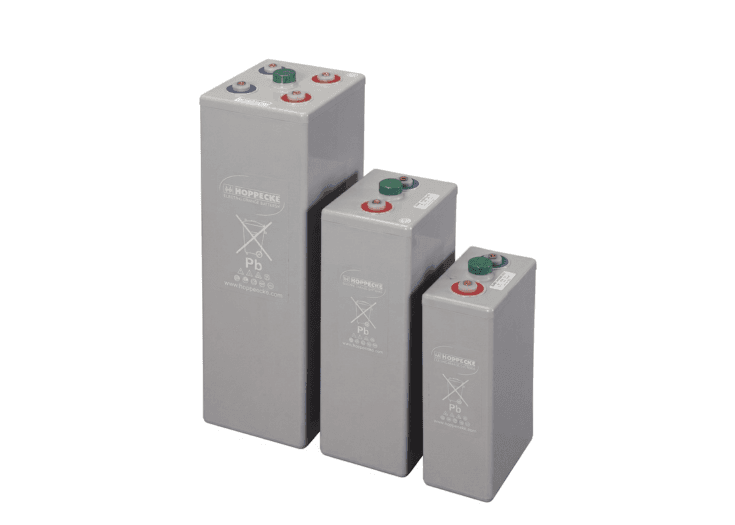

VR L 2-500	6 OPzV 420	495	147	208	535	35.0
VR L 2-580	7 OPzV 490	577	168	208	535	42.2
VR L 2-720	6 OPzV 600	718	147	208	710	49.4
VR L 2-960	8 OPzV 800	957	215	193	710	66.9
VR L 2-1080	9 OPzV 900	1077	215	235	710	77.6
VR L 2-1200	10 OPzV 1000	1197	215	235	710	81.6
VR L 2-1320	11 OPzV 1100	1316	215	277	710	92.3
VR L 2-1440	12 OPzV 1200	1436	215	277	710	96.4
VR L 2-1570	12 OPzV 1500	1570	215	277	855	111.4
VR L 2-1830	14 OPzV 1750	1832	215	400	815	144.0
VR L 2-2100	16 OPzV 2000	2093	215	400	815	153.7
VR L 2-2360	18 OPzV 2250	2355	215	490	815	180.0
VR L 2-2620	20 OPzV 2500	2617	215	490	815	187.3
VR L 2-2880	22 OPzV 2750	2878	215	580	815	213.2
VR L 2-3140	24 OPzV 3000	3140	215	580	815	223.1

Type Overview — power.bloc OPzV

Type	Voltage	Capacity C10 (Ah)	Length (mm)	Width (mm)	Height (mm)	Weight (kg)
VR L 12-50	12 V	57	272	205	383	34.0

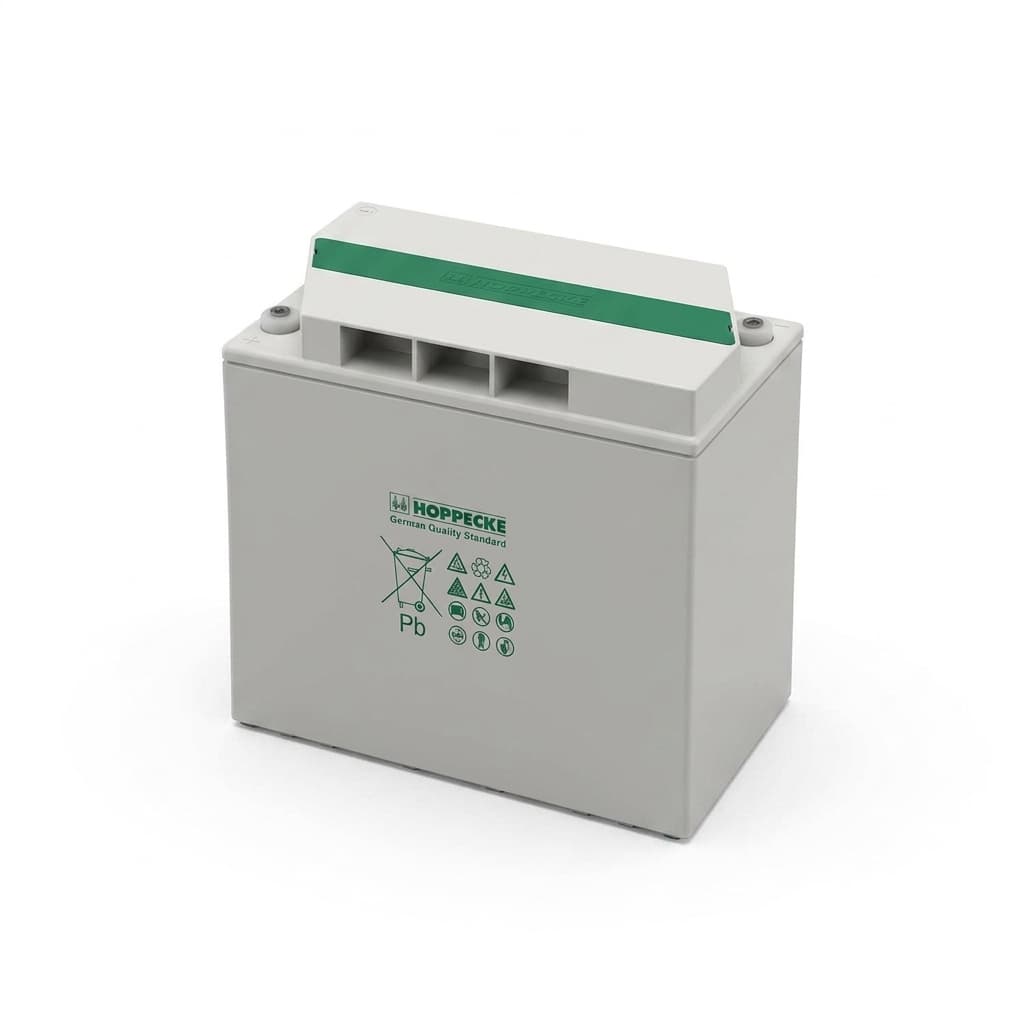

VR L 12-100	12 V	114	272	205	383	52.0
VR L 12-150	12 V	171	380	205	383	74.0
VR L 6-200	6 V	228	272	205	383	51.0
VR L 6-250	6 V	285	380	205	383	66.0
VR L 6-300	6 V	342	380	205	383	73.0
